Vox Slot Cutting Detail

The following detail is based on vintage Vox specifications. The gold cabinet piping, vinyl thickness and required slot dimensions have changed over time. If modern piping (3/16") is used, the slot dimensions will need to be increased. The same technique can be used but a different bit will be needed.

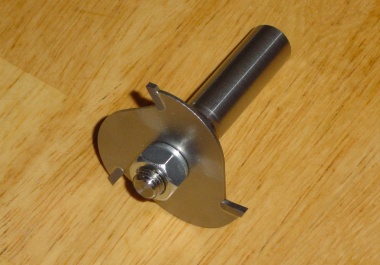

Slot Cutting Bit .080 Kerf

Router Table with Two Part Fence

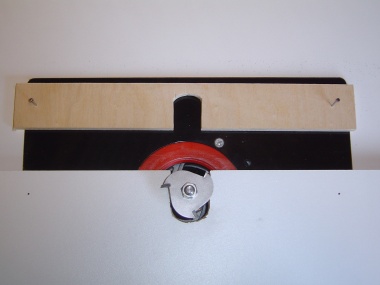

Fence Assembled Around Blade

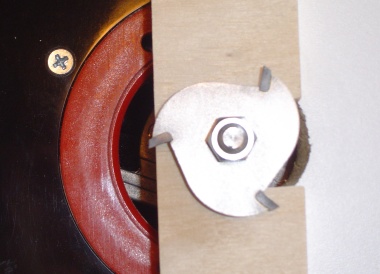

Fence Placement Determines Depth of Slot

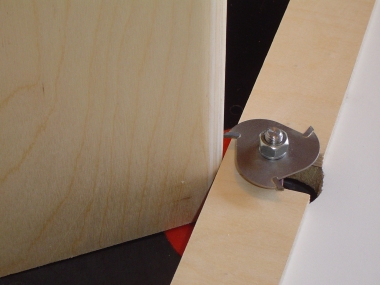

Upper Fence Needed for Corners

Cutting the Slots

Slots Completed

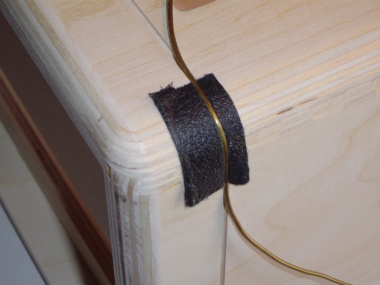

Testing the Fit
