Vox Westminster Head Cabinet

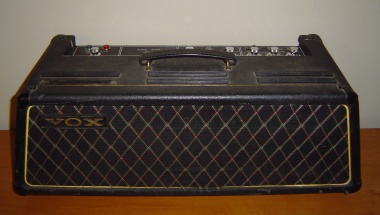

Before - Front View

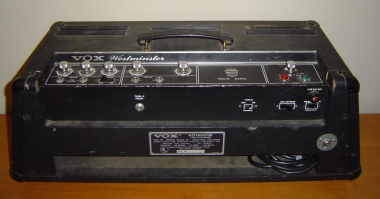

Before - Rear View
Ripping the Wood

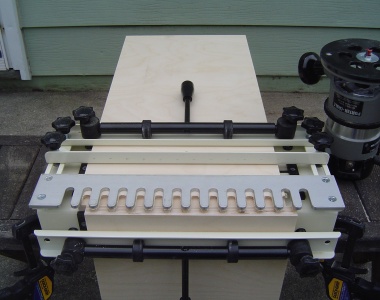

Cutting Dovetail Joints
Testing the Fit
Cutting Dados
Vent Hole Template
Cutting Vent Holes
Rear Control Panel Opening
Rear Control Panel Ends
Pieces Ready for Assembly

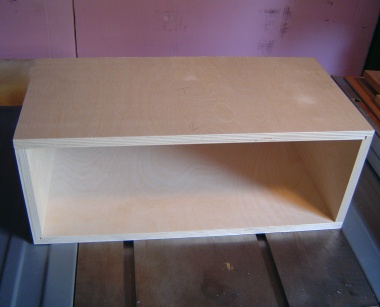

Dry Fit of Pieces
Dry Fit with Chassis
Glue Up

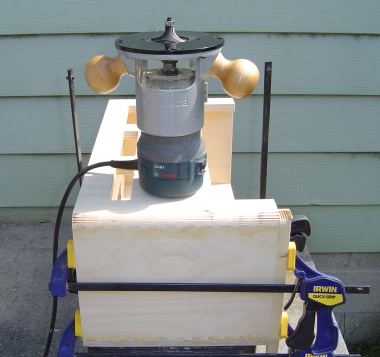

Rounding the Corners

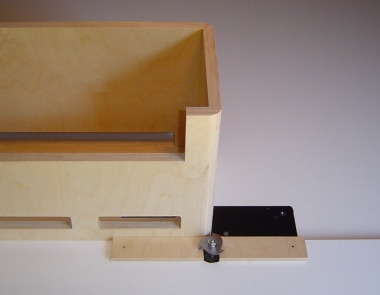

Cutting Slots
Slots Completed
Rounding Front and Rear Edges
Masking
Front Blackout

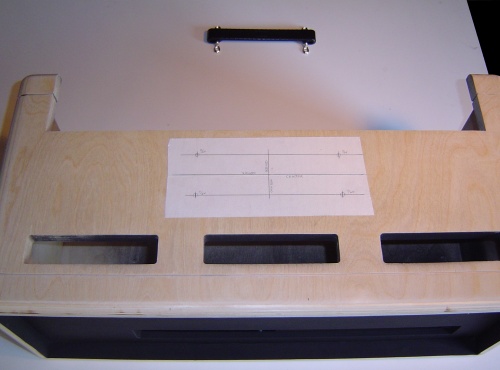

Handle Layout

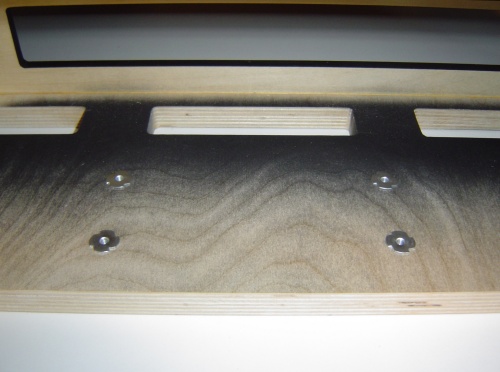

T-Nuts Installed

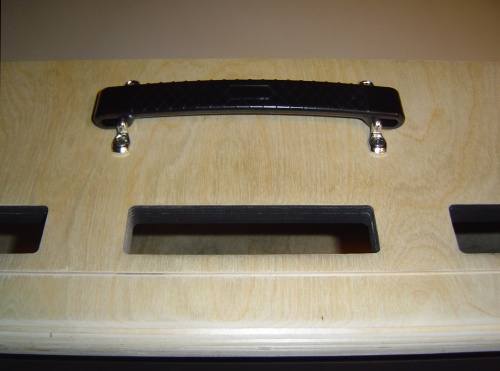

Test Fit of Handle
Interior/Exterior Blackout
Interior Finish

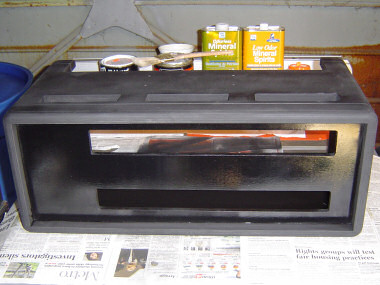

Front Finish

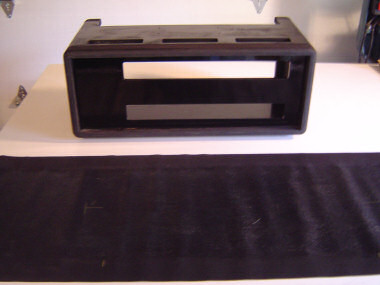

Gluing Vinyl
Vinyl Installed - Top View

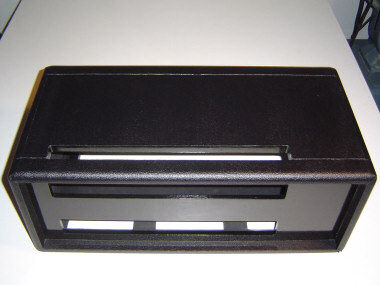

Vinyl Installed - Bottom View
Seam Detail on Bottom

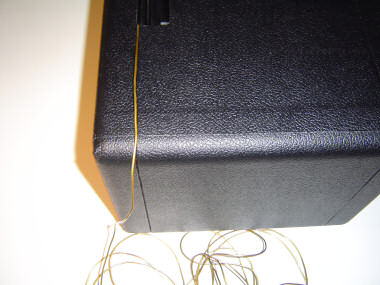

String Start
String Continued

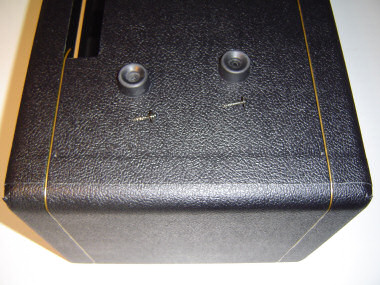

Feet

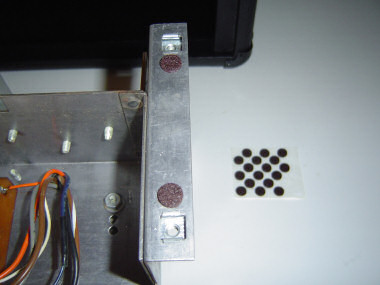

Felt Pads on Bottom of Chassis

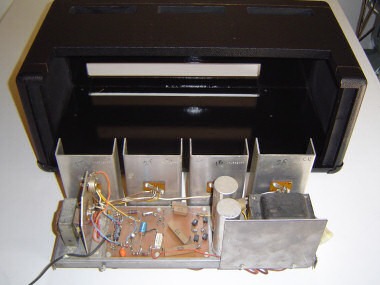

Chassis Before Installation

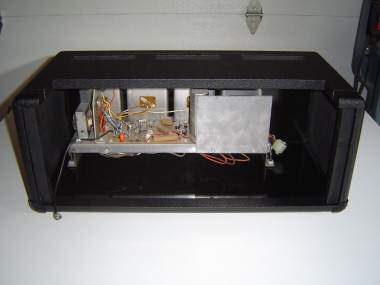

Chassis Installed
Corners
Vents and Handle Before Installation

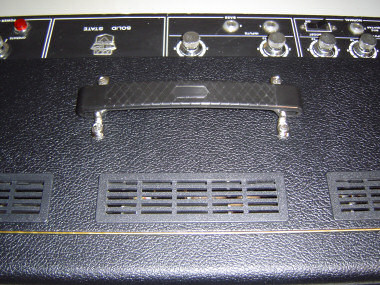

Vents and Handle Installed
Back Cutout
Blackout of Back

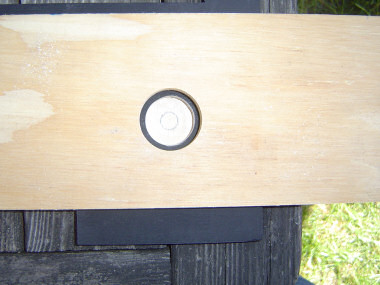

Template for Jack Recess

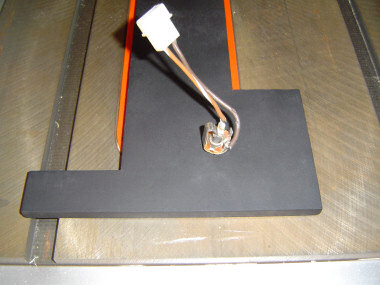

Jack Recess with Hole Drilled
Test Fit of Jack - Inside View
Gluing Vinyl to Back
Back Trimmed and Masked

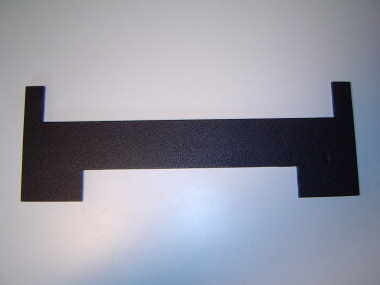

Back Completed
Back Installed
Speaker Jack

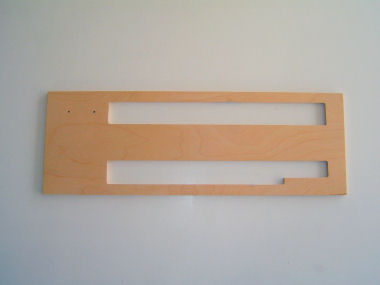

Face Plate Routed
Face Plate Blackout
Grill Parts
Stapleing Grill Cloth

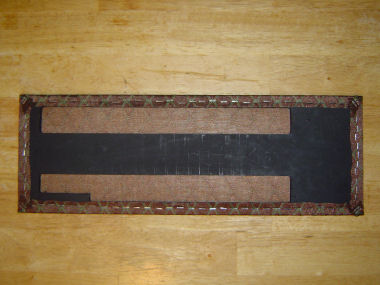

Grill Cloth Installed - Rear View
Grill Cloth Installed - Front View

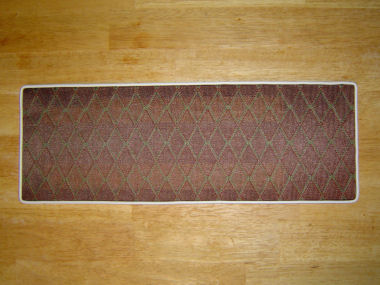

Piping Installed
VOX Logo and BASS Flag Installed

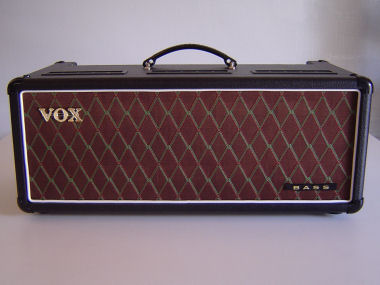

Grill Installed
Grill Installed
Bass Rig
